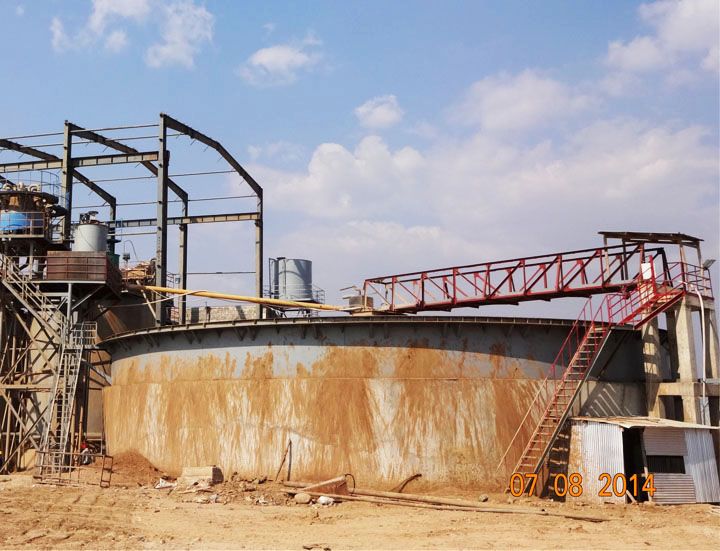

浓缩机
|
规格型号 |
浓缩池 Thickener pond |
沉淀面积 |
耙架转速 |
生产能力(t/d) |
电动机Motor |
外形尺寸(mm) |
重量(kg) |
|||
|
Standard Model |
直径Dia. (m) |
深度Depth (m) |
Sediment area (m2) |
Rotation speed of rake (r/min) |
Capacity (t/d) |
型号Model |
功率Power (kW) |
转速Rotation speed (r/min) |
Dimension (L×W×H) (mm) |
Weight (kg) |
|
TNZ-1.8 |
1.8 |
1.8 |
2.55 |
0.5 |
1.3-5.6 |
Y90S-4 |
1.1 |
1400 |
2000×1960×2900 |
14910 |
|
TNZ-3.6 |
3.6 |
1.8 |
10.2 |
0.4 |
5-22.4 |
Y90L-6 |
1.1 |
930 |
3917×3787×3194 |
2875 |
|
TNZ-6 |
6 |
3 |
28 |
0.3 |
14-62 |
Y90S-4 |
1.1 |
960 |
6170×5170×5153 |
8575 |
|
TNZ-9 |
9 |
3 |
63.5 |
0.26 |
32-150 |
Y132S-6 |
3 |
960 |
10000×10000×5337 |
5165 |
|
TNZ-12 |
12 |
3.5 |
113 |
0.19 |
≤250 |
Y132S-6 |
3 |
960 |
15500×12000×6625 |
8880 |
|
TNZ-15 |
15 |
3.6 |
176 |
0.113 |
≤390 |
Y132M2-6 |
5.5 |
960 |
17240×16000×7500 |
10557 |
|
7米三层7 meters 3 layers |
7 |
7 |
115.5 |
0.2481 |
15-50 |
Y112M-6 |
2.2 |
940 |
8500×8500×10218 |
14200 |
|
7米四层7 meters 4 layers |
7 |
9.5 |
154 |
0.2481 |
15-50 |
Y112M-6 |
2.2 |
940 |
8500×8500×12679 |
16089 |
|
9米三层9 meters 3 layers |
9 |
6.8 |
191 |
0.28 |
≤88 |
Y132M2-6 |
5.5 |
940 |
11090×10000×1740 |
21900 |
|
12米三层12 meters 3 layers |
12 |
7.23 |
339 |
0.2 |
≤160 |
Y132M2-6 |
5.5 |
960 |
15500×12000×10600 |
40400 |
|
15米三层15 meters 3 layers |
15 |
7.8 |
530 |
0.12 |
≤250 |
Y160M2-8 |
5.5 |
720 |
17240×16000×129114 |
51431 |
|
NG-15 |
15 |
3.5 |
177 |
0.1 |
86.4-390 |
Y132M2-6 |
5.5 |
920 |
15275×15200×7641 |
9100 |
|
NG-18 |
18 |
3.5 |
255 |
0.1 |
127-560 |
Y132M2-6 |
5.5 |
960 |
18275×18000×7641 |
10239 |
|
NG-24 |
24 |
3.6 |
452 |
0.07 |
226-1000 |
Y160M-6 |
7.5 |
970 |
25600×24880×7856 |
24470 |
|
NG-30 |
30 |
3.97 |
707 |
0.1 |
≤1560 |
Y160M-6 |
7.5 |
970 |
18275×18000×7641 |
30887 |
|
NT15 |
15 |
3.5 |
177 |
0.1 |
≤390 |
Y132M2-6 |
5.5 |
960 |
17240×16000×7500 |
11000 |
|
NT18 |
18 |
3.5 |
255 |
0.08 |
127-560 |
Y132M2-6 |
5.5 |
960 |
19800×19000×7500 |
10239 |
|
NT24 |
24 |
3.6 |
452 |
0.07 |
226-1000 |
Y160M-6 |
7.5 |
970 |
25600×24800×7856 |
24358 |
|
NT30 |
30 |
3.6 |
707 |
0.062 |
≤1560 |
Y160M-6 |
7.5 |
970 |
31800×31000×7856 |
32602 |
