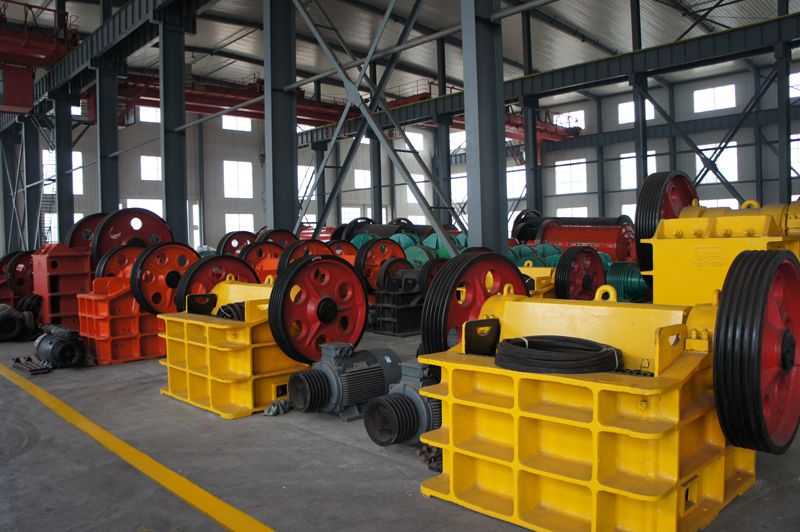

Jaw Crusher
[Catalog:Crushing System] [Date:2015-8-1 16:53:27] [Hits:] [Return]
| 规格型号 | 最大装料尺寸 | 产量 | 主轴转速 | 主轴偏心距 | 出料口调整范围 | 电动机 Motor | 外形尺寸（mm) | 重 量(kg) | |
| Standard Model | Max size of loading (mm) | Output(t/h) | Speed of spindle(r/pm) | Eccentricity of spindle(mm) | Regulating limits of exit (r/min) | 型号Model | 功率 (kW) power | Dimension(LxWxH) | Weight |
| PEF150 x 250 | 125 | 1-3 | 285 | 6 | 10-40 | Y132S-4 | 5.5 | 875X745X935 | 1160 |
| PEF250 x 400 | 210 | 5-20 | 275 | 10 | 20-80 | Y180L-6 | 15 | 1410x1310x1386 | 2572 |
| PEX150 x 750 | 120 | 8-35 | 320 | 8 | 10-40 | Y160L-4 | 15 | 1280x1610x1081 | 3350 |
| PEX250 x 750 | 210 | 15-35 | 300 | 12 | 15-50 | Y225M-6 | 30 | 1695x1920x1648 | 7200 |
| PEX250 x 1000 | 210 | 15-50 | 330 | 10 | 20-50 | Y280S-8 | 37 | 1550x1990x1370 | 6800 |
| PEX250 x 1200 | 210 | 20-70 | 320 | 12 | 20-60 | Y280S-6 | 45 | 1670x2190x1430 | 9000 |
| PEX300 x 1300 | 250 | 15-65 | 300 | 12 | 20-90 | YR280M-8 | 75 | 1930x2400x1747 | 9700 |
| PEF400 x 600 | 350 | 25-64 | 250 | 10 | 40-100 | Y250M-8 | 30 | 1700x1732x1658 | 6482 |
| PE500 x 750 | 400 | 30-80 | 250 | 16 | 50-120 | Y280S-6 | 45 | 1900x1876x1821 | 10500 |
| PE600 x 900 | 500 | 56-192 | 250 | 20 | 75-200 | JR75-6 | 75 | 2575x3723x2375 | 16080 |
| PE750 x 1060 | 630 | 72-138 | 250 | 19 | 80-140 | Y315M-6 | 90 | 3300x2700x2025 | 31050 |
| PE900 x 1200 | 750 | 87-164 | 260 | 22 | 90-165 | Y315L -6 | 110 | 5000x4471x3280 | 50060 |
