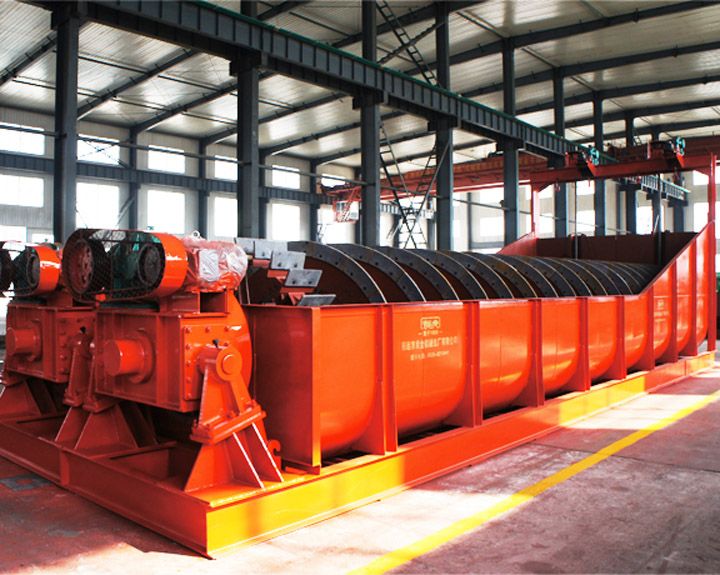

Spiral Classifier
[Catalog:Classifying System] [Date:2015-8-1 16:53:27] [Hits:] [Return]
| 类型 | 型号 | 螺旋转速 | 水槽Water | 生产能力Worker(t/d) | 电动机Motor | 外形尺寸（mm） | 重量(kg) | |||
| Type | Model | (r/min)Spiral speed | 长lenth(mm) | 宽Width(mm) | 溢流量Overflowing quantity | 返沙量Returning quantity | 型号 Model | 功率（kW）power | Dimension(LxWxH) | Weight |
| 高堰式单螺旋 high weir single | FLG-500 | 8-15.5 | 4500 | 556 | 45-77 | 145-260 | Y90L-6 | 1.1 | 5480x940x1274 | 1675 |
| FLG-750 | 2.4-9.9 | 5500 | 830 | 65-163 | 200-445 | Y132S-6 | 3 | 6720x1275x1584 | 2983 | |
| FLG-1000 | 1.6-7.4 | 6500 | 1100 | 85-120 | 255-700 | Y132M2-6 | 5.5 | 8004x1330x1934 | 4200 | |
| FLG-1200 | 5-7 | 6500 | 1372 | 150 | 1145-1600 | Y132M2-6 | 5.5 | 7979x1534x3087 | 7710 | |
| FLG-1500 | 2.5-6 | 8230 | 1664 | 230 | 1120-2680 | Y160M-6 | 7.5 | 10190x1876x4080 | 11283 | |
| FLG-2000 | 3.6-5.5 | 8400 | 2420 | 400 | 3240-5940 | Y160L-6/4 | 11-15 | 10590x2420x4491 | 21105 | |
| FLG-2400 | 3.6-5.5 | 9400 | 2700 | 580 | 6800 | Y180L-6 | 15 | 13700x2948x4913 | 23845 | |
| FLG-3000 | 3.43 | 12500 | 3200 | 870 | 16500 | Y250M-8 | 30 | 14811x3434x5550 | 43159 | |
| 高堰式双螺旋 high weir double screw | 2FLG-1200 | 3-7 | 6500 | 2600 | 310 | 2360-3280 | Y132M2-6 | 5.5x2 | 7979x2764x3690 | 16907 |
| 2FLG-1500 | 2.5-6 | 8230 | 3200 | 470 | 2280-5480 | Y160M-6 | 7.5x2 | 10190x3490x4080 | 22093 | |
| 2FLG-2000 | 3.6-5.5 | 8400 | 4240 | 800 | 8000 | Y160L-6/4 | 11/15x2 | 10590x4460x4491 | 35606 | |
| 2FLG-2400 | 3.67 | 9400 | 5100 | 1160 | 13600 | Y180L-6 | 15x2 | 13700x5370x4913 | 42065 | |
| 2FLG-3000 | 3.2 | 12500 | 6300 | 1740 | 23300 | Y250M-8 | 30x2 | 14800x6640x5550 | 84000 | |
| 沉没式单螺旋 immerged single screw | FLC-1000 | 3.5-3.67 | 7656 | 1100 | 75 | 160-700 | Y132M2-6 | 5.5 | 9000x1330x1934 | 5860 |
| FLC-1200 | 3-7 | 8400 | 1372 | 120 | 1150-1640 | Y160M-6 | 7.5 | 9460x1534x3713 | 10525 | |
| FLC-1500 | 2.5-6 | 10480 | 1664 | 185 | 1180-2740 | Y160M-6 | 7.5 | 12000x1876x4080 | 15355 | |
| FLC-2000 | 3.6-5.5 | 13790 | 2420 | 320 | 3890-5940 | Y160L-6 | 15 | 14500x2420x4491 | 29560 | |
| FLC-2400 | 3.64 | 14130 | 2700 | 455 | 6800 | Y200L2-6 | 22 | 15900x2948x4913 | 33976 | |
| FLC-3000 | 3.2 | 14300 | 3200 | 705 | 11650 | Y250M-8 | 30 | 1770x3434x5550 | 45060 | |
| 沉没式双螺旋 merged double screw | 2FLC-1200 | 5-7 | 8400 | 2600 | 240 | 1770-2800 | Y160M-6 | 7.5x2 | 9460x2764x1274 | 19850 |
| 2FLC-1500 | 2-6 | 10480 | 3200 | 370 | 2280-5480 | Y160M-6 | 7.5x2 | 12000x3490x4080 | 27457 | |
| 2FLC-2000 | 3.6-5.5 | 13790 | 4288 | 640 | 7760-11880 | Y160L-6 | 15x2 | 14500x4460x4491 | 50000 | |
| 2FLC-2400 | 3.67 | 14130 | 5216 | 910 | 13600 | Y200L2-6 | 22x2 | 15900x5370x4913 | 66368 | |
| 2FLC-3000 | 3.2 | 14300 | 6300 | 1410 | 23300 | Y250M-8 | 30x2 | 17700x6640x5500 | 92600 | |
