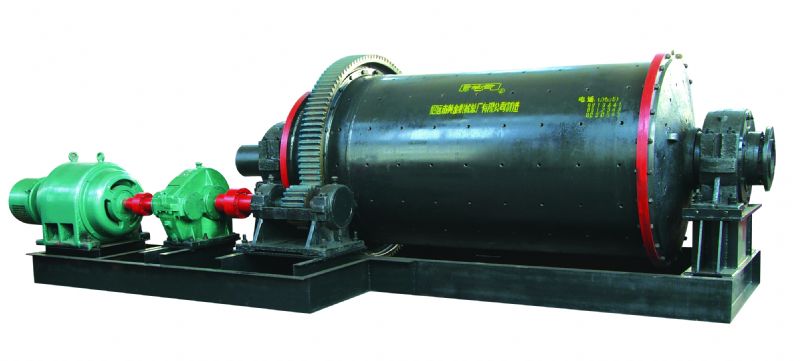

圆锥球磨机
|
型号 |
规格 |
筒体规格Cylinder Standards |
筒体转速 |
装球重量 |
给料粒度 |
出料粒度 |
产量 |
电动机Motor |
外形尺寸（mm） |
重量(kg) |
||
|
Model |
Standards |
直径Dia. (mm) |
长度Length (mm) |
Cylinder rotating speed (r/min) |
Weight with balls (t) |
Feeding size (mm) |
Output Size (mm) |
Capacity (t/h) |
型号Model |
功率power (kW) |
Dimension (LxWxH) (mm) |
Weight (kg) |
|
GZM0912 |
Φ900x1200 |
900 |
1200 |
39.3 |
1.2 |
≤15 |
0.074-0.3 |
0.3-0.72 |
Y150M-6 |
7.5 |
2900x1920x1270 |
4317 |
|
GZM0921 |
Φ900x2100 |
900 |
2100 |
39.3 |
1.7 |
≤15 |
0.074-0.3 |
0.5-1.3 |
Y160L-6 |
11 |
3840x1920x1270 |
5760 |
|
GZM1216 |
Φ1200x1600 |
1200 |
1600 |
34.8 |
2.5 |
≤20 |
0.074-0.3 |
0.8-2.0 |
Y225S-8 |
18.5 |
3987x2150x1880 |
6650 |
|
GZM1220 |
Φ1200x2000 |
1200 |
2000 |
34.7 |
3.3 |
≤20 |
0.074-0.6 |
1-2.5 |
Y225M-8 |
22 |
4560x2170x1875 |
7360 |
|
GZM1224 |
Φ1200x2400 |
1200 |
2400 |
35.2 |
4.11 |
≤20 |
0.074-0.3 |
1.29-3.17 |
Y280S-8 |
37 |
5115x2235x1875 |
9360 |
|
GZM1228 |
Φ1200x2800 |
1200 |
2800 |
35.2 |
4.8 |
≤20 |
0.074-0.3 |
1.5-3.7 |
Y280S-8 |
37 |
5480x2335x1880 |
10756 |
|
GZM1236 |
Φ1200x3600 |
1200 |
3600 |
35.2 |
6 |
≤20 |
0.074-0.6 |
2.0-4.2 |
Y280M-8 |
45 |
6365x2216x1665 |
11468 |
|
GZM1240 |
Φ1200x4000 |
1200 |
4000 |
35.2 |
6.5 |
≤20 |
0.074-0.3 |
2.2-9 |
Y315S-8 |
55 |
7116x2445x1855 |
12296 |
|
GZM1244 |
Φ1200x4400 |
1200 |
4400 |
35.2 |
7.2 |
≤20 |
0.074-0.6 |
2.2-11 |
Y315S-8 |
55 |
7546x2355x1875 |
12992 |
|
GZM1520 |
Φ1500x2000 |
1500 |
2000 |
27.6 |
6 |
≤30 |
0.074-0.6 |
1.9-7.6 |
Y280M-8 |
45 |
4938x2828x2490 |
12975 |
|
GZM1523 |
Φ1500x2300 |
1500 |
2300 |
27.6 |
7 |
≤30 |
0.074-0.3 |
2-6.5 |
JR115-8 |
60 |
5738x2938x2140 |
13970 |
|
GZM1529 |
Φ1500x2900 |
1500 |
2900 |
27.6 |
8.24 |
≤30 |
0.074-0.3 |
2.7-7.2 |
JR115-8 |
60 |
6338x2938x2140 |
17623 |
|
GZM1535 |
Φ1500x3500 |
1500 |
3500 |
31 |
10 |
≤30 |
0.074-0.6 |
3.8-15.2 |
JR117-8 |
80 |
7370x2938x2490 |
18760 |
|
GZM1541 |
Φ1500x4100 |
1500 |
4100 |
31 |
12 |
≤30 |
0.074-0.3 |
4.1-11 |
JR125-8 |
95 |
7970x2938x2490 |
19320 |
|
GZM1544 |
Φ1500x4400 |
1500 |
4400 |
31 |
14 |
≤30 |
0.074-0.3 |
4.7-12.5 |
JR126-8 |
110 |
8270x2938x2490 |
20702 |
|
GZM1556 |
Φ1500x5600 |
1500 |
5600 |
27.6 |
16 |
≤30 |
0.074-0.6 |
3.6-25 |
JR126-8 |
110 |
9470x2938x2490 |
22676 |
|
GZM1836 |
Φ1830x3600 |
1830 |
3600 |
25.2 |
13.7 |
≤25 |
0.074-0.6 |
2.8-21 |
JR127-8 |
130 |
8560x3812x3134 |
36254 |
|
GZM1842 |
Φ1830x4200 |
1830 |
4200 |
25.2 |
16 |
≤25 |
0.074-0.6 |
3.5-25 |
JR128-8 |
155 |
9160x3812x3134 |
37106 |
|
GZM1846 |
Φ1830x4600 |
1830 |
4600 |
25.2 |
17.5 |
≤25 |
0.074-0.6 |
3.5-26 |
JR128-8 |
155 |
9560x3812x3134 |
37483 |
|
GZM1856 |
Φ1830x5600 |
1830 |
5600 |
25.2 |
20 |
≤25 |
0.074-0.6 |
4-30 |
JR136-8 |
180 |
10385x3910x3334 |
40785 |
|
GZM1860 |
Φ1830x6000 |
1830 |
6000 |
25.2 |
21.5 |
≤25 |
0.074-0.6 |
4.2-32 |
JR136-8 |
180 |
10800x3910x3334 |
41385 |
|
GZM1864 |
Φ1830x6400 |
1830 |
6400 |
25.2 |
23 |
≤25 |
0.074-0.6 |
4.4-34 |
JR137-8 |
210 |
11200x3910x3334 |
42685 |
|
GZM2122 |
Φ2100x2200 |
2100 |
2200 |
23.8 |
12.6 |
≤25 |
0.074-0.5 |
2.5-19 |
JR125-8 |
95 |
7326x3768x3394 |
29779 |
|
GZM2127 |
Φ2100x2700 |
2100 |
2700 |
23.8 |
13.5 |
≤25 |
0.074-0.6 |
3.5-25 |
JR128-8 |
155 |
7325x3920x3394 |
34860 |
|
GZM2130 |
Φ2100x3000 |
2100 |
3000 |
23.8 |
17 |
≤25 |
0.074-0.6 |
3.3-25 |
JR128-8 |
155 |
8200x3920x3394 |
34959 |
|
GZM2132 |
Φ2100x3200 |
2100 |
3200 |
23.8 |
14.5 |
≤25 |
0.074-0.6 |
3.5-27 |
JR136-8 |
180 |
8400x3920x3394 |
36988 |
|
GZM2135 |
Φ2100x3500 |
2100 |
3500 |
23.8 |
20 |
≤25 |
0.074-0.6 |
4.5-33 |
JR136-8 |
180 |
8450x3920x3394 |
37607 |
|
GZM2140 |
Φ2100x4000 |
2100 |
4000 |
23.8 |
21 |
≤25 |
0.074-0.6 |
5-35 |
JR137-8 |
210 |
8900x3920x3394 |
39737 |
|
GZM2145 |
Φ2100x4500 |
2100 |
4500 |
23.8 |
22 |
≤25 |
0.074-0.5 |
5-35 |
JR138-8 |
245 |
9400x3920x3394 |
46009 |
|
GZM2158 |
Φ2100x5800 |
2100 |
5800 |
23.8 |
25 |
≤25 |
0.074-0.5 |
7-43 |
JR1410-8 |
280 |
10700x3920x3394 |
55930 |
|
GZM2727 |
Φ2700x2700 |
2700 |
2700 |
21.7 |
25 |
≤20 |
0.074-0.5 |
9-74 |
JR138-8 |
245 |
7093x4897x4385 |
56757 |
|
GZM2733 |
Φ2700x3300 |
2700 |
3300 |
21.7 |
32 |
≤25 |
0.074-0.5 |
11.8-92.7 |
JR157-8 |
320 |
9290x5610x4510 |
71482 |
|
GZM2736 |
Φ2700x3600 |
2700 |
3600 |
21.7 |
34 |
≤25 |
0.074-0.5 |
12.5-80 |
JR158-8 |
380 |
9590x5610x4510 |
74209 |
|
GZM2742 |
Φ2700x4200 |
2700 |
4200 |
21.7 |
36 |
≤25 |
0.074-0.5 |
15-117 |
JRQ158-8 |
380 |
10190x5610x4510 |
82777 |
|
注：G—滚动轴承型Z—圆锥型M—球磨机G—格子型Y—溢流型(群虎命名法) |
||||||||||||
